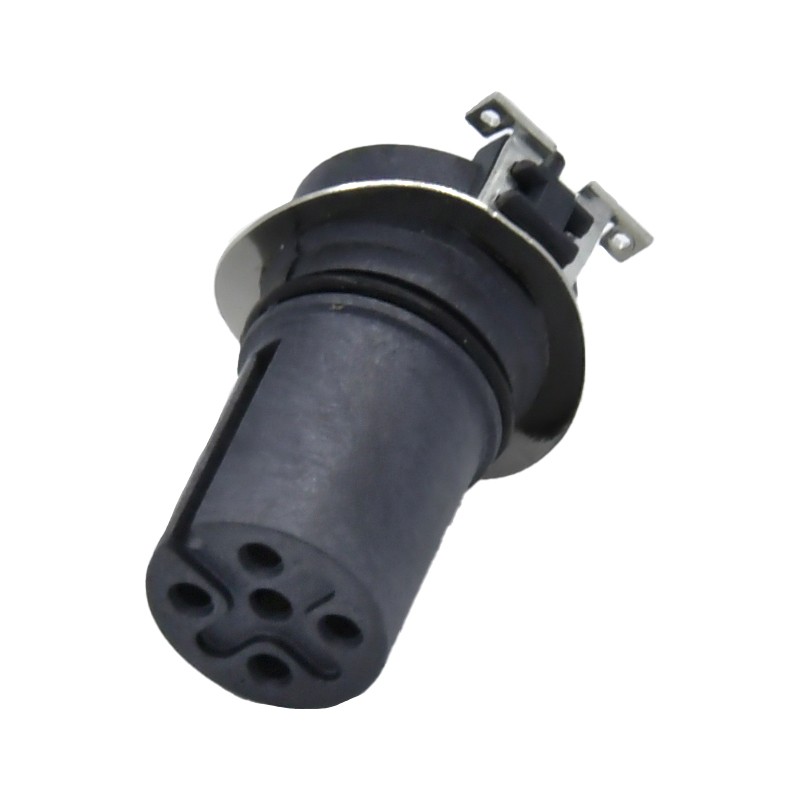

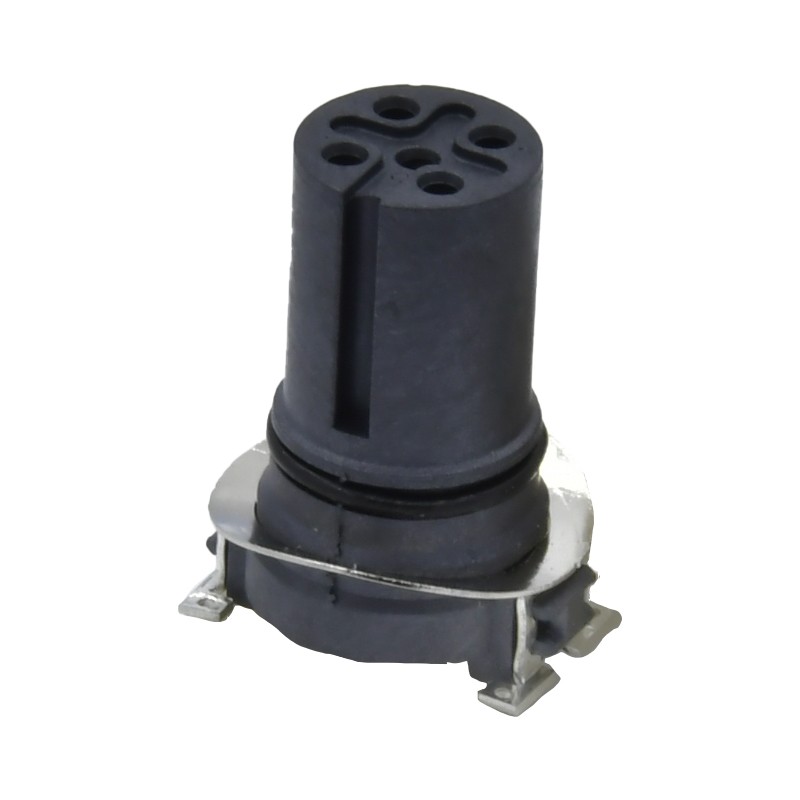

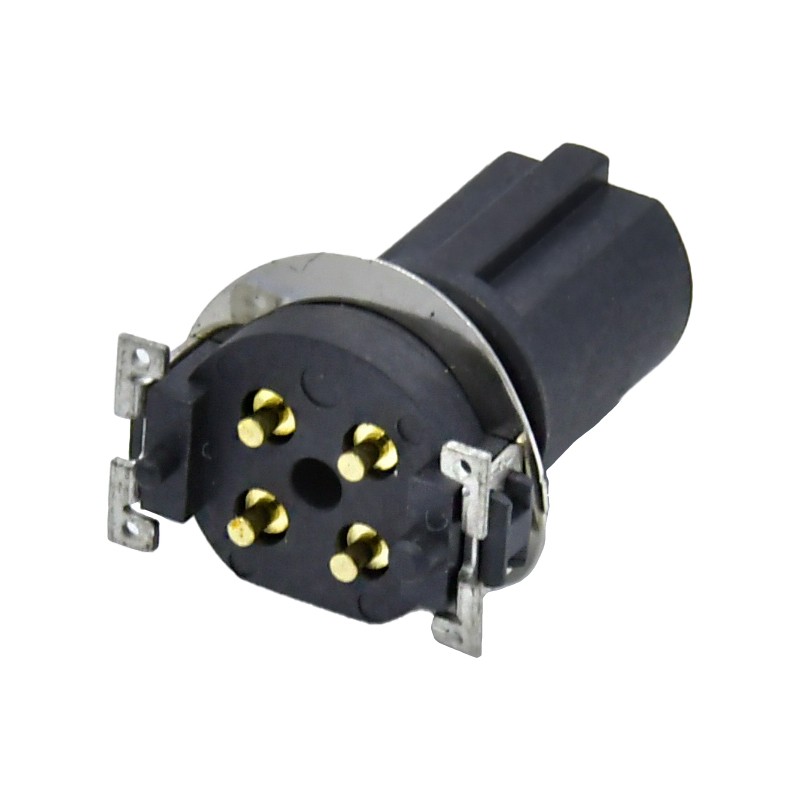

Product Description:
Connector series: M12 SMD Panel Mount
Gender: Female
Coding: A,B,D
Part No.: RG123026
Download:
Electrical Characteristics
|
Number of contacts |
2 |
3 |
4 |
4 |
5 |
5 |
6 |
8 | 12 |
17 |
|
Code |
A |
A |
A |
D |
A |
B |
A |
A |
A | A |
|
Rated voltage |
250V |
60V |
30V |
30V |
||||||
|
Rated current |
4A |
4A |
2A |
1.5A |
||||||
|
Pin OD |
2-8Pin: 0.9mm,12-17Pin:0.7mm |
|||||||||
General Information:
|
Contact Termination |
SMD |
|
Mount thread |
/ |
|
Shielding |
Unavailable |
|
Operating temperature |
-25℃ ~ +85℃ |
|
Degree of protection |
IP67/IP68 |
|
Mechanical operation |
>500 mating cycles |
|
Contact resistance |
≤10 MΩ |
|
Pin contact material |
Cuzn |
|
Contact plating |
Au (gold plating) |
|
Material of housing |
Brass/Zinc diecasting nickel plated |
